The Differences Between End-Bearing Piles And Friction Piles

Pile foundations are a crucial part of structural engineering, transmitting loads from the superstructure to the underlying soil. Based on their load transfer mechanism, pile foundations are classified into end-bearing piles and friction piles. These two types differ significantly in terms of load-bearing principles, design applications, and suitability for specific conditions. This article provides a detailed explanation of their distinctions, focusing on their definitions, working mechanisms, application scenarios, and construction characteristics.

1. Definition and Features of End-Bearing Piles

End-bearing piles are piles that transfer loads directly to a hard rock or stable soil layer through the pile tip. Their main features are as follows:

1. Load-Bearing Mechanism:
   The bearing capacity of end-bearing piles primarily comes from the contact pressure between the pile tip and the rock or hard soil layer. The side friction of the pile plays a minor role in load transfer.

2. Suitable Conditions:

• Suitable for sites where the bearing layer is deeply buried and the upper soil is soft and compressible.

• The bearing layer is typically strong weathered rock, semi-weathered rock, or intact rock that provides high bearing capacity.

3. Construction Characteristics:

• Construction must ensure the pile tip reaches a sufficient depth into the bearing layer to meet load requirements.

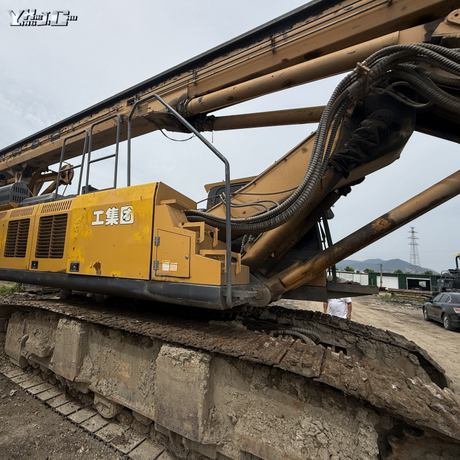

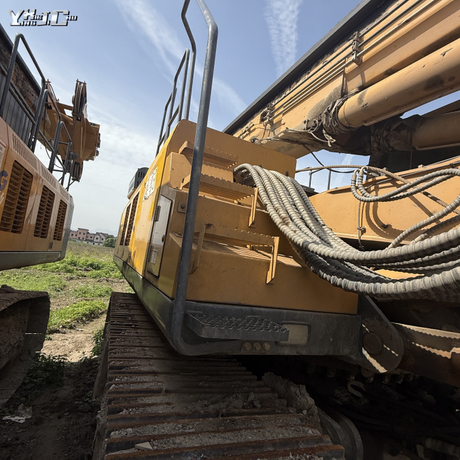

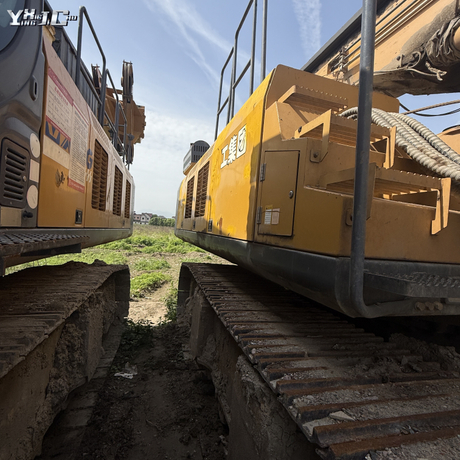

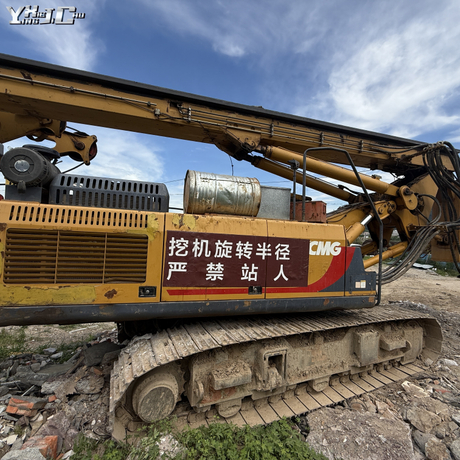

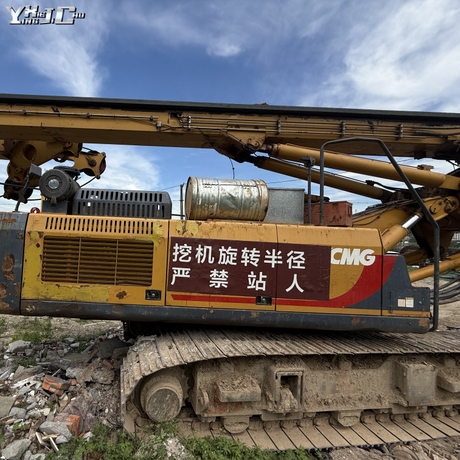

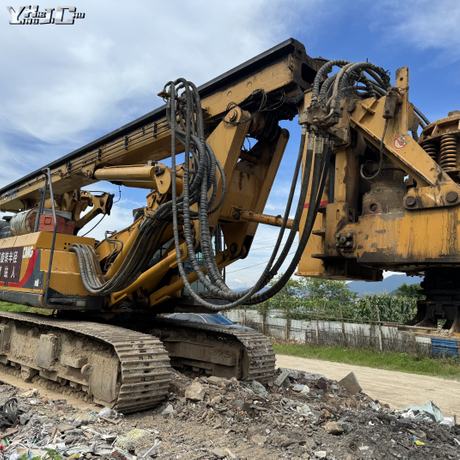

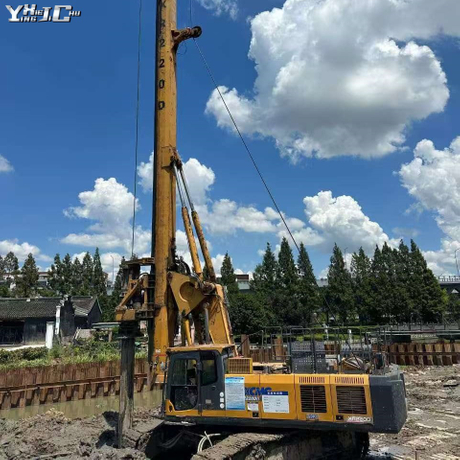

• Drilling rigs such as rotary drilling rigs or impact drills are often used to penetrate the hard bearing layers.

4. Advantages:

• High bearing capacity, suitable for heavy-load structures.

• Minimal deformation, making it ideal for high-rise buildings, bridges, and other projects with stringent settlement requirements.

5. Disadvantages:

• Higher construction costs due to the need for precise determination of the bearing layer and potential challenges in drilling through hard rock.

2. Definition and Features of Friction Piles

Friction piles rely primarily on the frictional resistance between the pile surface and the surrounding soil to transfer loads. Their main features are as follows:

1. Load-Bearing Mechanism:
   The bearing capacity of friction piles primarily comes from the friction between the pile surface and the surrounding soil, while the pile tip's contribution is minimal.

2. Suitable Conditions:

• Suitable for uniform soil layers without a distinct bearing layer, such as soft clay or sandy soils.

• Often used in medium-load projects with less stringent settlement control requirements.

3. Construction Characteristics:

• No strict requirements for reaching a deep bearing layer; the pile length should be sufficient to generate adequate frictional resistance.

• Commonly constructed using methods like auger drilling or driven piles, which are cost-effective.

4. Advantages:

• Lower construction costs, particularly in cases where the bearing layer is deep, as friction piles do not need to penetrate it.

• Faster construction, suitable for large-scale pile foundation projects.

5. Disadvantages:

• Greater deformation, making them unsuitable for projects requiring strict settlement control.

• Lower bearing capacity compared to end-bearing piles, limiting their use in high-load applications.

3. Key Differences Between End-Bearing and Friction Piles

1. Load-Bearing Mechanism:

• End-bearing piles transfer loads mainly through the pile tip to the bearing layer.

• Friction piles rely on the friction between the pile surface and the surrounding soil.

2. Geological Suitability:

• End-bearing piles are suitable for soft soil with a distinct hard bearing layer.

• Friction piles are ideal for uniform soils without a clear bearing layer.

3. Design and Construction:

• End-bearing piles require precise determination of the bearing layer location and higher construction accuracy.

• Friction piles focus on pile length and maximizing side friction, with less reliance on the bearing layer.

4. Application Scenarios:

• End-bearing piles are used in high-load projects like high-rise buildings and heavy bridges.

• Friction piles are more common in light-load applications like residential buildings or factories.

5. Economic Considerations:

• End-bearing piles have higher costs, especially for deep bearing layers.

• Friction piles are more economical for large-scale foundation work.

4. Conclusion

Both end-bearing piles and friction piles have their respective advantages and applications in pile foundation engineering. The choice between them depends on geological conditions, load requirements, and cost considerations. Proper selection, design, and construction of piles ensure structural safety and cost efficiency, providing the best foundation solution for any project.
